Change a diagram

POST /api/v1/diagrams/:id/revisions. The change keeps everything you did not mention and becomes the next version; downloads give it from then on. One change at a time: a second one while the first runs gets 409 conflict.

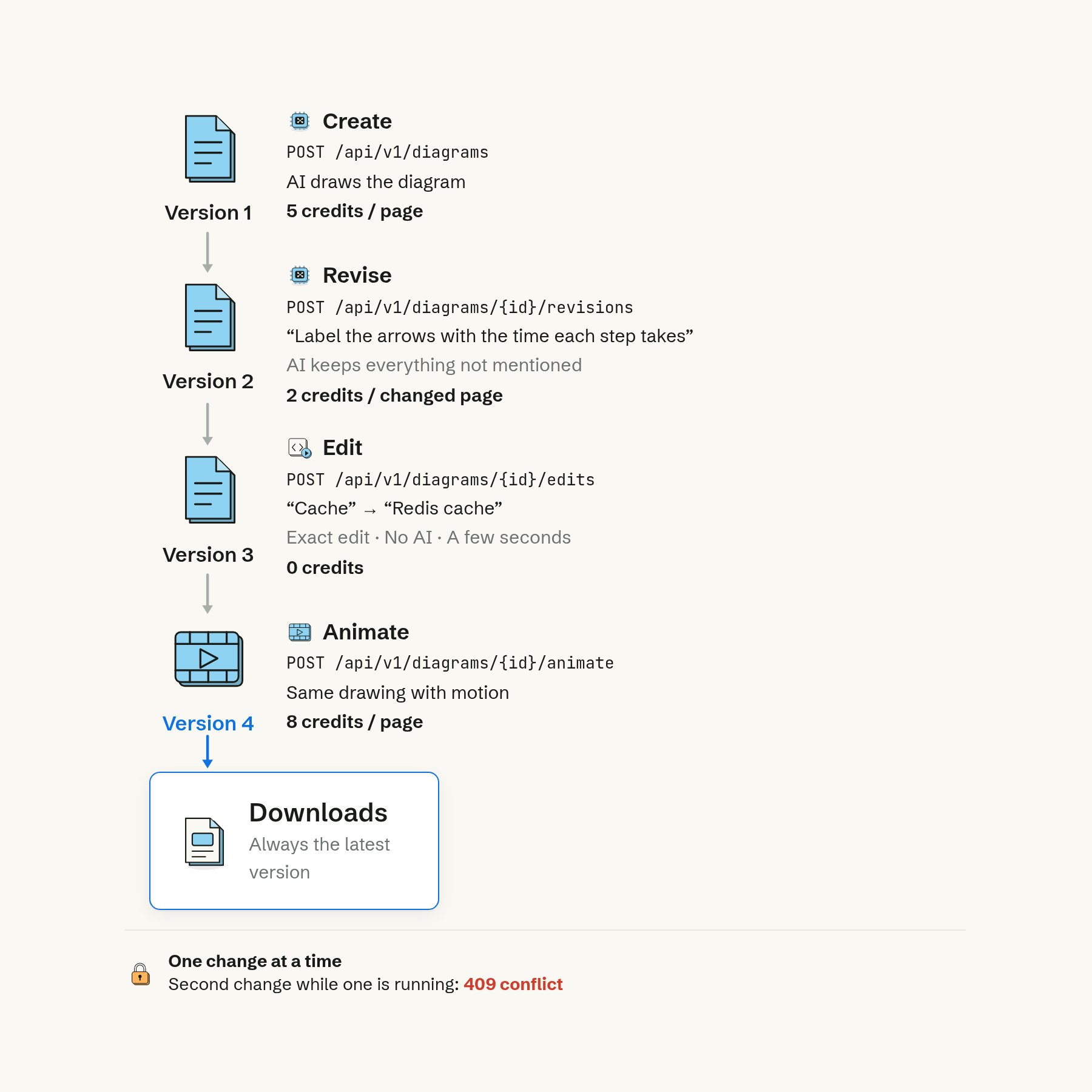

Diagram of a diagram's versions: POST /api/v1/diagrams makes version 1 (the AI draws it, 5 credits a page); POST /revisions makes version 2 (the AI keeps everything not mentioned, 2 credits a changed page); POST /edits retyping Cache to Redis cache makes version 3 (exact edit, no AI, 0 credits); POST /animate makes version 4, the same drawing with motion (8 credits a page). Downloads are always the latest version, and a second change while one is running gets 409 conflict. — Every change, edit or animation adds a version, and downloads always give the latest.

curl https://app.diagramkit.ai/api/v1/diagrams/DIAGRAM_ID/revisions \
  -H "Authorization: Bearer $DIAGRAMKIT_KEY" \
  -H "Content-Type: application/json" \
  -d '{"prompt": "Label the arrows with the time each step takes", "wait": 180}'

Parameter	In	Values	Default	What it does
`prompt`	revisions body	text, 1 to 4,000 characters	required	What to change: “label the arrows with the time each step takes”, “use metric units”, “make it fit a narrow column”.
`images`	revisions body	as for making one	`[]`	Pictures to work from for the change.
`preset`	revisions body	a preset, or null for none	the diagram’s own	Make this change, and later ones, for another destination.
`prompt`	animate body	text, up to 1,000 characters	none	How it should move, if you have a preference.
`wait`	both bodies	whole seconds, 0 to 300	`0`	Hold the request open until the new version is done.
`Idempotency-Key`	header	any text, up to 200 characters	none	As for making one: a key used before returns that job.
