Download it

GET any of these after /api/v1/diagrams/:id/, with your key. The response is the file, with its Content-Type. Files are made on request: a picture takes a few seconds, a recording 20 to 60; the same request again is answered from cache. Downloads are always of the latest version. SVG and PDF are on paid plans: on the free plan they answer 403 with error.type plan_required, which a retry will not change; PNG and JPEG work on every plan. Every download made with your key also answers with X-Download-Url, a link to the same file that works without a key for 15 minutes, and X-Download-Expires-At, when it stops working. Hand it to a browser, a build step or a coding agent to fetch with a plain GET, for example curl -fsSL -o images/flow.png "$URL". It opens only that file of that diagram, with the same parameters, at that version: after a change to the diagram it answers 410 invalid_link, and once expired 401 invalid_link; download again for a new one.

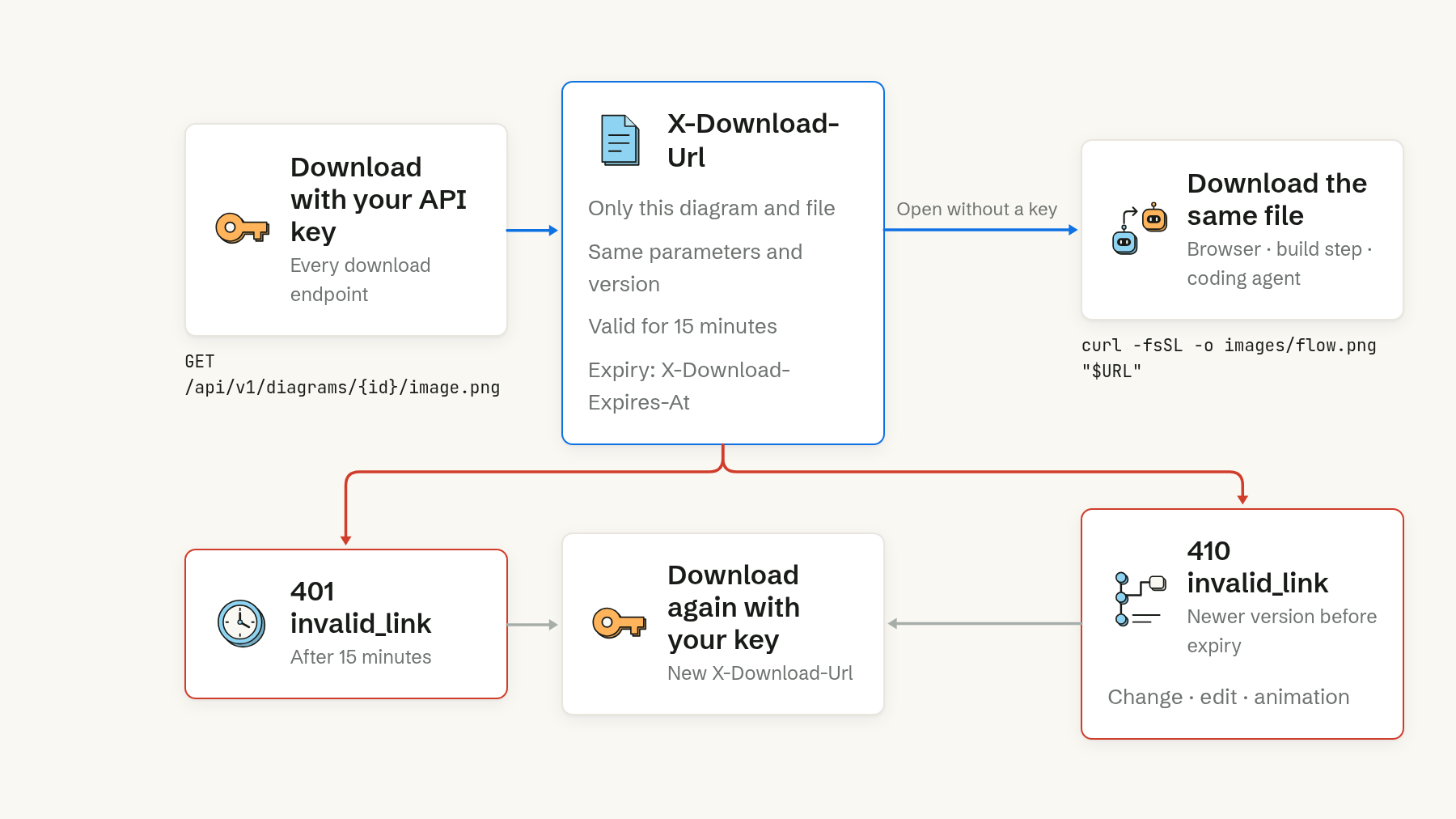

Diagram of a download link's life: a download with your API key returns X-Download-Url, a link to only that diagram and file, with the same parameters and version, valid for 15 minutes (X-Download-Expires-At). A browser, build step or coding agent opens it without a key, for example with curl. After 15 minutes it answers 401 invalid_link; after a newer version (a change, edit or animation) it answers 410 invalid_link. Either way, download again with your key for a new link. — A download link opens one file without a key until it expires or the diagram changes; then download again with your key.

Path	Content-Type	Parameters	What you get
`image.png`	`image/png`	`device`, `quality`, `width_in`	A sharp picture for slides, docs and the web.
`image.jpg`	`image/jpeg`	`device`, `quality`, `width_in`	A smaller picture for email and social posts.
`image.svg`	`image/svg+xml`	`device`	Vector, every label editable text, for Figma, Illustrator and the web. Paid plans.
`image.pdf`	`application/pdf`	`device`, `pages`	Vector, for print and layout tools; `pages=all` makes one PDF of every page of a multi-page diagram. Paid plans.
`animation.mp4`	`video/mp4`	`quality`, `size`, `page`	A video, up to 90 seconds. Only for an animated diagram. A multi-page diagram plays every page in order, with a short fade between pages, unless `page` picks one; a long one holds each still page for less so it fits (at least 1.5 seconds), and one too long even so is refused with `422 too_long`.
`animation.gif`	`image/gif`	`quality`, `size`, `page`	A looping GIF, up to 60 seconds. Only for an animated diagram. Pages as for `animation.mp4`.

Parameters go in the query string, for example image.png?quality=print&width_in=3.25&device=phone:

Parameter	For	Values	Default	What it does
`device`	`image.*`	`desktop`, `phone`	`desktop`	Which layout: desktop is drawn 900 px wide, phone 390 px wide. Every diagram has both.
`quality`	`image.png`, `image.jpg`	`web`, `high`, `print`	`web`	`web` is 1× (900 px wide) and instant; `high` is 2× (1800 px); `print` is 300 dpi at `width_in` inches, with the dpi written into the file.
`page`	`image.*`	1 to 100	`1`	Which page of a multi-page diagram.
`pages`	`image.pdf`	`all`	none	Every page as one PDF, a page each.
`width_in`	`image.png`, `image.jpg` with `quality=print`	a number from 1 to 20 (inches, decimals allowed)	`6.5`	The printed width. 6.5 fills a textbook page (1950 px); 3.25 fits one column (975 px). Ignored for other qualities.
`quality`	`animation.*`	`low`, `medium`, `high`	`medium`	MP4: low 675 px at up to 24 fps, medium 900 px at 30 fps, high 1800 px at up to 60 fps. GIF: low 675 px at 15 fps, medium 900 px at 20 fps, high 1350 px at 30 fps. Widths are for `size=chat`; framed sizes scale the same way (low is 0.75×, high up to 2×). Higher is larger and slower to record.
`size`	`animation.*`	`chat`, `square`, `portrait`, `story`, `landscape`, `wide`	the preset’s frame, or `chat`	The frame: chat is the diagram’s own shape; square 1080×1080 (1:1); portrait 1080×1350 (4:5); story 1080×1920 (9:16); landscape 1920×1080 (16:9); wide 1920×960 (2:1). The diagram is laid out again for that shape and fitted as large as the frame allows.
`page`	`animation.*`	1 to 100	none	One page of a multi-page diagram. Left out, every page plays in order in one video: an animated page plays its animation, a still page holds for about 3 seconds, or less in a long set so it fits the format’s length (never under 1.5 seconds). About 27 still pages fit a GIF and 41 an MP4; for more, download `image.pdf?pages=all` or one page at a time.
